Monday 11 September 2023

Install EM Agent On Exadata Using Oracle Enterprise Manager 13c

Overview

Oracle Exadata Database Machine consists of several components such as Compute nodes, Storage Cells, ILOM, Infiniband Switches, Cisco Switch and PDUs. So we need a tool that can manage all these components from one single console. Oracle Enterprise manager Cloud Control is the recommended best practices for monitoring and managing Exadata Database machine. Once the Exadata database Machine is installed the next step is enable monitoring for it.

The following Exadata components can be monitored and managed by OEM:
  • Compute Nodes
  • Storage Cells
  • Infiniband Switches
  • Cisco Switches
  • Power Distribution Units
  • KVM

The first step in monitoring and managing Exadata using OEM is to install the EM Agent. You can install EM Agent in several ways, such as:

  • Using EM Kit Method
  • Using the Agent push method
  • Using an RPM file
  • Using the AgentPull script
  • Using the AgentDeploy script

In this article we will demonstrate how to Install EM Agent on Exadata using Agent Push method using OEM 13c. Agent Software is installed only on Compute nodes.

Environment Details

Here we will be installing EM Agent on a Exadata V2 Full Rack consists of:
  • 8 Compute Nodes
  • 14 Storage Cells
  • 3 Infiniband Switches
  • 1 Cisco Switches
  • 2 Power Distribution Units
  • 1 KVM

Procedure to Install EM Agent on Exadata Compute Nodes

Enter the OEM 13c URL into the web browser and hit enter

Enter the SYSMAN Credentials or any other user that have the necessary permissions to Install Agent Software

We are on the OEM 13c Home page now

From the Home page, click on Setup à Add Target à Add Targets manually

Click on Install Agent on Host

On this page, click on the +Add button to add the Host targets

Enter all fully qualified Hostnames (8 compute nodes) and for Platform “Same for All Hosts” and click next

Enter the Installation Base Directory.
The instance base directory will be populated automatically for you.

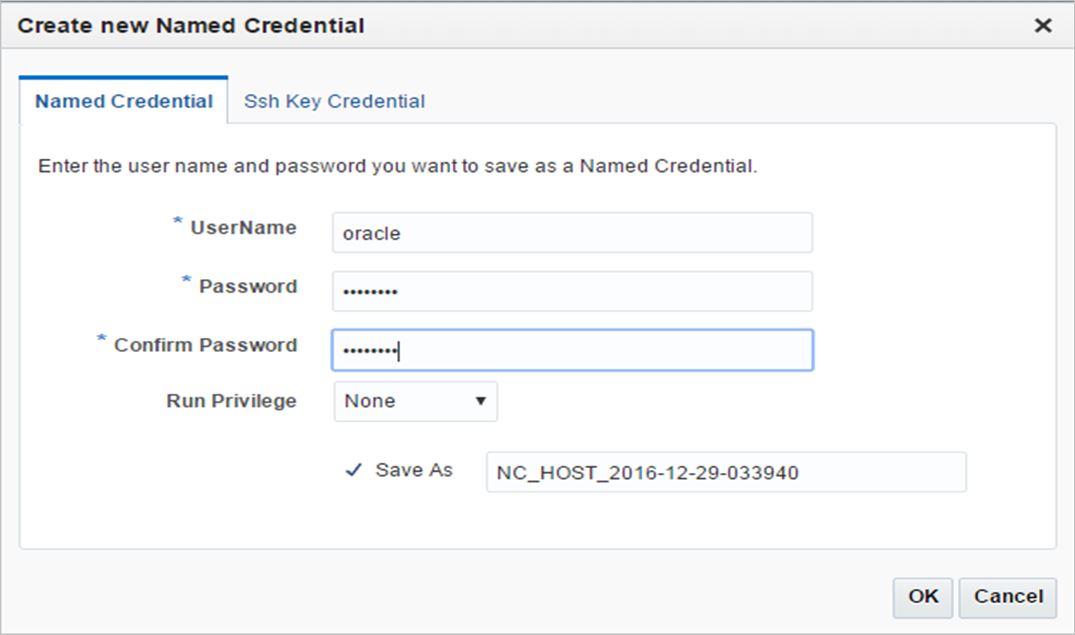

Click on the + symbol on the Named credentials and enter oracle user and its password.
Click on the + symbol on the Root credentials line and enter root user and its password.




Click next

Click Deploy Agent

The Agent Installation process started

Initialization in progress

The Remote prerequisite check shows warning. This can be ignored as oracle user doesn’t have sudo permissions to run the root.sh script. The can be ran at the end.

Click Continue à Continue, All Hosts

Installation process completed. Click Done.

Connect to Exadata compute node 1 and run the root.sh script as follows:

[root@dm01db01 ~]# dcli -g dbs_group -l root '/u01/app/oracle/product/Agent13c/agent_13.2.0.0.0/root.sh'
dm01db01: Finished product-specific root actions.
dm01db01: /etc exist
dm01db02: Finished product-specific root actions.
dm01db02: /etc exist
dm01db03: Finished product-specific root actions.
dm01db03: /etc exist
dm01db04: Finished product-specific root actions.
dm01db04: /etc exist
dm01db05: Finished product-specific root actions.
dm01db05: /etc exist
dm01db06: Finished product-specific root actions.
dm01db06: /etc exist
dm01db07: Finished product-specific root actions.
dm01db07: /etc exist
dm01db08: Finished product-specific root actions.
dm01db08: /etc exist



Verify Agent is running on Exadata compute nodes.

dm01db01-orcl1 {/home/oracle}:/u01/app/oracle/product/Agent13c/agent_inst/bin/emctl status agent
Oracle Enterprise Manager Cloud Control 13c Release 2
Copyright (c) 1996, 2016 Oracle Corporation.  All rights reserved.
---------------------------------------------------------------
Agent Version          : 13.2.0.0.0
OMS Version            : 13.2.0.0.0
Protocol Version       : 12.1.0.1.0
Agent Home             : /u01/app/oracle/product/Agent13c/agent_inst
Agent Log Directory    : /u01/app/oracle/product/Agent13c/agent_inst/sysman/log
Agent Binaries         : /u01/app/oracle/product/Agent13c/agent_13.2.0.0.0
Core JAR Location      : /u01/app/oracle/product/Agent13c/agent_13.2.0.0.0/jlib
Agent Process ID       : 4544
Parent Process ID      : 4424
Agent URL              : https://dm01db01.int.thomsonreuters.com:3872/emd/main/
Local Agent URL in NAT : https://dm01db01.int.thomsonreuters.com:3872/emd/main/
Repository URL         : https://oem13c.domain.com:1159/empbs/upload
Started at             : 2016-12-29 04:40:07
Started by user        : oracle
Operating System       : Linux version 2.6.39-400.248.3.el6uek.x86_64 (amd64)
Number of Targets      : 3
Last Reload            : (none)
Last successful upload                       : 2016-12-29 04:44:54
Last attempted upload                        : 2016-12-29 04:44:54
Total Megabytes of XML files uploaded so far : 0.33
Number of XML files pending upload           : 0
Size of XML files pending upload(MB)         : 0
Available disk space on upload filesystem    : 17.84%
Collection Status                            : Collections enabled
Heartbeat Status                             : Ok
Last attempted heartbeat to OMS              : 2016-12-29 04:47:11
Last successful heartbeat to OMS             : 2016-12-29 04:47:11
Next scheduled heartbeat to OMS              : 2016-12-29 04:48:12

---------------------------------------------------------------
Agent is Running and Ready



Verify that Exadata computes are visible in OEM 13c

Next, we will discover Exadata Database Machine in OEM 13c



I hope this article helped you. Your suggestions/feedback are most welcome.

Keep learning... Have a great day!!!


Thank you,
Amit Pawar
Email: amitpawar.dba@gmail.com
WhatsApp No: +91-8454841011


Friday 10 April 2015

ORA-01031: insufficient privileges while configure Enterprise Manager

Configuring OEM manually seems to be very straight forward but sometimes you may come across erors which make it difficult.
Below is one of the problem and its solution which I faced last week.
[oracle@PSNA-UAT-DBO001(VOTEUT01):~]$ emca -config dbcontrol db -repos recreate

STARTED EMCA at Apr 6, 2015 4:53:32 AM
EM Configuration Assistant, Version 11.2.0.3.0 Production
Copyright (c) 2003, 2011, Oracle.  All rights reserved.

Enter the following information:
Database SID: VOTEUT01
Listener port number: 1571
Listener ORACLE_HOME: /opt/app/oracle/VOTEPR01/product/11.2.0/db_1
Password for SYS user:
Password for DBSNMP user:
Password for SYSMAN user:
Email address for notifications (optional):
Outgoing Mail (SMTP) server for notifications (optional):
ASM ORACLE_HOME: /opt/app/oracle/GI/product/11.2.0/grid_1
ASM SID [ +ASM ]:
ASM port [ 1571 ]:
ASM username [ ASMSNMP ]:
ASM user password:
-----------------------------------------------------------------

You have specified the following settings

Database ORACLE_HOME ................ /opt/app/oracle/VOTEPR01/product/11.2.0/db_1

Local hostname ................ PSNA-UAT-DBO001.ad.issgovernance.com
Listener ORACLE_HOME ................ /opt/app/oracle/VOTEPR01/product/11.2.0/db_1
Listener port number ................ 1571
Database SID ................ VOTEUT01
Email address for notifications ...............
Outgoing Mail (SMTP) server for notifications ...............
ASM ORACLE_HOME ................ /opt/app/oracle/GI/product/11.2.0/grid_1
ASM SID ................ +ASM
ASM port ................ 1571
ASM user role ................ SYSDBA
ASM username ................ ASMSNMP

-----------------------------------------------------------------
----------------------------------------------------------------------
WARNING : While repository is dropped the database will be put in quiesce mode.
----------------------------------------------------------------------
Do you wish to continue? [yes(Y)/no(N)]: Y
Apr 6, 2015 4:54:32 AM oracle.sysman.emcp.EMConfig perform
INFO: This operation is being logged at /opt/app/oracle/VOTEPR01/cfgtoollogs/emca/VOTEQA01/emca_2015_04_06_04_53_32.log.
Apr 6, 2015 4:54:33 AM oracle.sysman.emcp.ParamsManager checkListenerStatusForDBControl

WARNING: ORA-01031: insufficient privileges

Apr 6, 2015 4:54:33 AM oracle.sysman.emcp.EMConfig perform
SEVERE:

Database connection through listener failed. Fix the error and run EM Configuration Assistant again.

Some of the possible reasons may be:

1) Listener port 1571 provided is incorrect. Provide the correct port.
2) Listener is not up. Start the Listener.
3) Database service VOTEQA01 is not registered with listener. Register the database service
4) Listener is up on physical host and ORACLE_HOSTNAME environment variable is set to virtual host. Unset ORACLE_HOSTNAME environment variable.
5) Listener is up on virtual host. Set environment variable ORACLE_HOSTNAME=<virtual host>.
6) /etc/hosts does not have correct entry for hostname.

Refer to the log file at /opt/app/oracle/VOTEPR01/cfgtoollogs/emca/VOTEQA01/emca_2015_04_06_04_53_32.log for more details.
Could not complete the configuration. Refer to the log file at /opt/app/oracle/VOTEPR01/cfgtoollogs/emca/VOTEQA01/emca_2015_04_06_04_53_32.log for more details.


You may face this issue because OS user not added to onistall or dba group.but in my case it was there.
After researching I found the reason was missing password file.So to resolve it I have created new password file and re-ran the command and it completed successfully.

[oracle@PSNA-UAT-DBO001(VOTEUT01):dbs]$orapwd file=orapw$ORACLE_SID password=oracle entries=1 force=y

[oracle@PSNA-UAT-DBO001(VOTEUT01):dbs]$ emca -config dbcontrol db -repos recreate

STARTED EMCA at Apr 6, 2015 4:58:39 AM
EM Configuration Assistant, Version 11.2.0.3.0 Production
Copyright (c) 2003, 2011, Oracle.  All rights reserved.

Enter the following information:
Database SID: VOTEUT01
Listener port number: 1571
Listener ORACLE_HOME: /opt/app/oracle/VOTEPR01/product/11.2.0/db_1
Password for SYS user:
Password for DBSNMP user:
Password for SYSMAN user:
Email address for notifications (optional):
Outgoing Mail (SMTP) server for notifications (optional):
ASM ORACLE_HOME: /opt/app/oracle/GI/product/11.2.0/grid_1
ASM SID [ +ASM ]:
ASM port [ 1571 ]:
ASM username [ ASMSNMP ]:
ASM user password:
-----------------------------------------------------------------

You have specified the following settings

Database ORACLE_HOME ................ /opt/app/oracle/VOTEPR01/product/11.2.0/db_1

Local hostname ................ PSNA-UAT-DBO001.ad.issgovernance.com
Listener ORACLE_HOME ................ /opt/app/oracle/VOTEPR01/product/11.2.0/db_1
Listener port number ................ 1571
Database SID ................ VOTEUT01
Email address for notifications ...............
Outgoing Mail (SMTP) server for notifications ...............
ASM ORACLE_HOME ................ /opt/app/oracle/GI/product/11.2.0/grid_1
ASM SID ................ +ASM
ASM port ................ 1571
ASM user role ................ SYSDBA
ASM username ................ ASMSNMP

-----------------------------------------------------------------
----------------------------------------------------------------------
WARNING : While repository is dropped the database will be put in quiesce mode.
----------------------------------------------------------------------
Do you wish to continue? [yes(Y)/no(N)]: Y
Apr 6, 2015 4:59:28 AM oracle.sysman.emcp.EMConfig perform
INFO: This operation is being logged at /opt/app/oracle/VOTEPR01/cfgtoollogs/emca/VOTEQA01/emca_2015_04_06_04_58_39.log.
Apr 6, 2015 4:59:30 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Dropping the EM repository (this may take a while) ...
Apr 6, 2015 5:01:54 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Repository successfully dropped
Apr 6, 2015 5:01:55 AM oracle.sysman.emcp.EMReposConfig createRepository
INFO: Creating the EM repository (this may take a while) ...

Apr 6, 2015 5:08:59 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Repository successfully created
Apr 6, 2015 5:09:01 AM oracle.sysman.emcp.EMReposConfig uploadConfigDataToRepository
INFO: Uploading configuration data to EM repository (this may take a while) ...
Apr 6, 2015 5:09:54 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Uploaded configuration data successfully
Apr 6, 2015 5:09:55 AM oracle.sysman.emcp.ParamsManager getLocalListener
WARNING: Error retrieving listener for PSNA-UAT-DBO001.ad.issgovernance.com
Apr 6, 2015 5:09:57 AM oracle.sysman.emcp.util.DBControlUtil secureDBConsole
INFO: Securing Database Control (this may take a while) ...
Apr 6, 2015 5:10:06 AM oracle.sysman.emcp.util.DBControlUtil secureDBConsole
INFO: Database Control secured successfully.
Apr 6, 2015 5:10:06 AM oracle.sysman.emcp.util.DBControlUtil startOMS
INFO: Starting Database Control (this may take a while) ...
Apr 6, 2015 5:10:29 AM oracle.sysman.emcp.EMDBPostConfig performConfiguration
INFO: Database Control started successfully
Apr 6, 2015 5:10:29 AM oracle.sysman.emcp.EMDBPostConfig performConfiguration
INFO: >>>>>>>>>>> The Database Control URL is https://PSNA-UAT-DBO001.ad.issgovernance.com:5500/em <<<<<<<<<<<
Apr 6, 2015 5:10:32 AM oracle.sysman.emcp.EMDBPostConfig invoke
WARNING:
************************  WARNING  ************************

Management Repository has been placed in secure mode wherein Enterprise Manager data will be encrypted.  The encryption key has been placed in the file: /opt/app/oracle/VOTEPR01/product/11.2.0/db_1/PSNA-UAT-DBO001.ad.issgovernance.com_VOTEQA01/sysman/config/emkey.ora. Ensure this file is backed up as the encrypted data will become unusable if this file is lost.

***********************************************************
Enterprise Manager configuration completed successfully






I hope this article helped you. Your suggestions/feedback are most welcome.

Keep learning... Have a great day!!!

Monday 2 February 2015

Oracle 11g Enterprise Manager is not able to connect to the database instance.

When you try to open EM you may see following message "Enterprise Manager is not able to connect to the database instance. The state of the components are listed below."

Authentication passed but it does not work.

If problem on authentication check sysman user`s account status.


SQL> select account_status from dba_users where username='SYSMAN';

Also it will helpful checking emctl`s log which locates under:

/u01/app/oracle/product/11.2.0/dbhome_1/localhost.localdomain_ulfetdb/sysman/log

After checking logs I decided to recreate dbcontrol using below command.

It will ask some parameters (some of them optional, just enter and skip)
Also to be patient, it may last several minutes...


[oracle@localhost ~]$ emca -config dbcontrol db -repos recreate

STARTED EMCA at Dec 26, 2012 10:19:51 AM
EM Configuration Assistant, Version 11.2.0.0.2 Production
Copyright (c) 2003, 2005, Oracle. All rights reserved.

Enter the following information:
Database SID: ulfetdb
Database Control is already configured for the database ulfetdb
You have chosen to configure Database Control for managing the database ulfetdb
This will remove the existing configuration and the default settings and perform a fresh configuration
Do you wish to continue? [yes(Y)/no(N)]: yes
Listener ORACLE_HOME [ /u01/app/oracle/product/11.2.0/dbhome_1 ]: listener
Password for SYS user:
Password for DBSNMP user:
Password for SYSMAN user:
Password for SYSMAN user: Email address for notifications (optional):
Outgoing Mail (SMTP) server for notifications (optional):

-----------------------------------------------------------------

You have specified the following settings

Database ORACLE_HOME ................ /u01/app/oracle/product/11.2.0/dbhome_1

Local hostname ................ localhost.localdomain
Listener ORACLE_HOME ................ listener
Listener port number ................ 1521
Database SID ................ ulfetdb
Email address for notifications ...............
Outgoing Mail (SMTP) server for notifications ...............

-----------------------------------------------------------------
Do you wish to continue? [yes(Y)/no(N)]: yes
Dec 26, 2012 10:21:01 AM oracle.sysman.emcp.EMConfig perform
INFO: This operation is being logged at /u01/app/oracle/cfgtoollogs/emca/ulfetdb/emca_2012_12_26_10_19_50.log.
Dec 26, 2012 10:21:02 AM oracle.sysman.emcp.util.DBControlUtil stopOMS
INFO: Stopping Database Control (this may take a while) ...
Dec 26, 2012 10:21:25 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Dropping the EM repository (this may take a while) ...
Dec 26, 2012 10:28:38 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Repository successfully dropped
Dec 26, 2012 10:28:39 AM oracle.sysman.emcp.EMReposConfig createRepository
INFO: Creating the EM repository (this may take a while) ...
Dec 26, 2012 10:43:01 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Repository successfully created
Dec 26, 2012 10:43:30 AM oracle.sysman.emcp.EMReposConfig uploadConfigDataToRepository
INFO: Uploading configuration data to EM repository (this may take a while) ...
Dec 26, 2012 10:45:19 AM oracle.sysman.emcp.EMReposConfig invoke
INFO: Uploaded configuration data successfully
Dec 26, 2012 10:45:20 AM oracle.sysman.emcp.ParamsManager getLocalListener
WARNING: Error retrieving listener for localhost.localdomain
Dec 26, 2012 10:45:30 AM oracle.sysman.emcp.util.DBControlUtil configureSoftwareLib
INFO: Software library configured successfully.
Dec 26, 2012 10:45:30 AM oracle.sysman.emcp.EMDBPostConfig configureSoftwareLibrary
INFO: Deploying Provisioning archives ...
Dec 26, 2012 10:46:14 AM oracle.sysman.emcp.EMDBPostConfig configureSoftwareLibrary
INFO: Provisioning archives deployed successfully.
Dec 26, 2012 10:46:14 AM oracle.sysman.emcp.util.DBControlUtil secureDBConsole
INFO: Securing Database Control (this may take a while) ...
Dec 26, 2012 10:46:52 AM oracle.sysman.emcp.util.DBControlUtil secureDBConsole
INFO: Database Control secured successfully.
Dec 26, 2012 10:46:52 AM oracle.sysman.emcp.util.DBControlUtil startOMS
INFO: Starting Database Control (this may take a while) ...
Dec 26, 2012 10:48:42 AM oracle.sysman.emcp.EMDBPostConfig performConfiguration
INFO: Database Control started successfully
Dec 26, 2012 10:48:42 AM oracle.sysman.emcp.EMDBPostConfig performConfiguration
INFO: >>>>>>>>>>> The Database Control URL is https://localhost.localdomain:1158/em <<<<<<<<<<<
Dec 26, 2012 10:48:49 AM oracle.sysman.emcp.EMDBPostConfig invoke
WARNING:
************************ WARNING ************************

Management Repository has been placed in secure mode wherein Enterprise Manager data will be encrypted. The encryption key has been placed in the file: /u01/app/oracle/product/11.2.0/dbhome_1/localhost.localdomain_ulfetdb/sysman/config/emkey.ora. Please ensure this file is backed up as the encrypted data will become unusable if this file is lost.

***********************************************************
Enterprise Manager configuration completed successfully
FINISHED EMCA at Dec 26, 2012 10:48:49 AM


Let`s check




Alternatively you can directly drop repository and then create it again using below commands.

emca -deconfig dbcontrol db -repos drop
emca -config dbcontrol db -repos create






I hope this article helped you. Your suggestions/feedback are most welcome.

Keep learning... Have a great day!!!
